Belt-Type Oil Skimmer

Oil Skimmer for waste water ETP, STP Applications

Model: OOSB 65

Suitable for: ETP, STP, Chemical Industries, and other applications requiring efficient oil removal.

Specifications:

• - Belt Width: 65 mm
• - Oil Removal Capacity: 15-20 LPH (Liters Per Hour)
  Note: Actual oil removal may vary depending on the oil layer thickness and type of oil present.
• - Electrical Requirements:
  • - Power Consumption: 25 Watts
  • - Voltage: 230 VAC / 415 VAC
  • - Phase: Available in 3-phase and 1-phase configurations
  • - Motor: AC Geared Motor, RPM suited to application
• - Belt: Imported polymer belts for extended service life and optimal oil removal performance
• - Optional Oil Concentrator: To remove residual water from the oil after skimming
• - Discharge: Only oil is discharged into the drum, ensuring effective separation from water

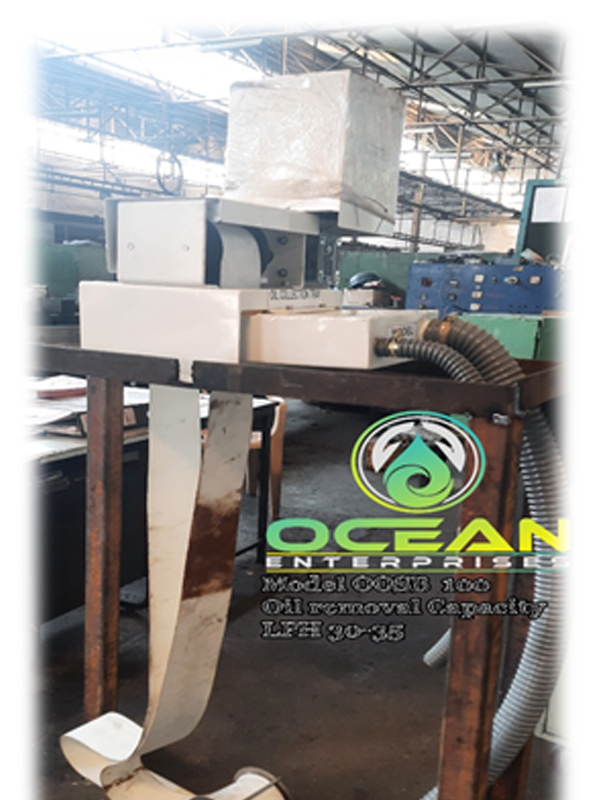

Belt-Type Oil Skimmer

Oil Skimmer for waste water ETP, STP Applications

Model: OOSB 100

Suitable for Applications:ETP & STP & Chemical industry Other Application

Specifications:

• - Belt Width: 100 mm
• - Oil Removal Capacity: 30-35 LPH (Liters Per Hour)
  Note: Oil removal depends on oil layer thickness and oil type.
• - Electrical Requirements:
  • - Motor: A.C. Three Phase Geared Motor
  • - Motor Rating: 0.25 H.P. / 0.18 KW, 415 VAC (+/- 10%), 1440 rpm, 50 Hz (+/- 5%), TEFC, Worm Geared
  • - Motor Make: SIEMENS or as per PO and specifications approved by you
• - Belt: Imported polymer belts for extended service life and maximum oil removal efficiency
• - Optional Oil Concentrator: Removes residual water picked up during skimming
• - Discharge: Only oil flows into the discharge drum, ensuring effective separation from water

This oil skimmer is designed for heavy-duty applications, ETP & STP & Chemical industry ,steel plants Other Application.

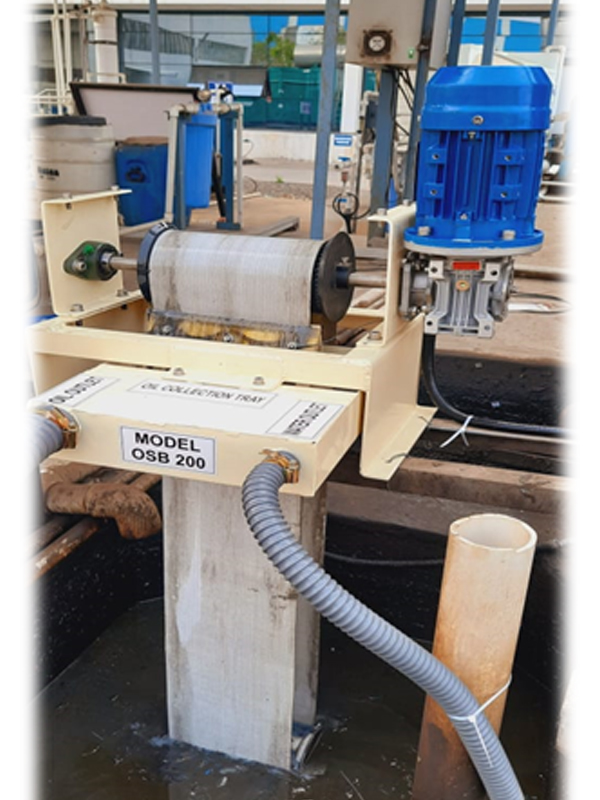

Belt-Type Oil Skimmer

Oil Skimmer for waste water ETP, STP Applications

Model: OOSB 200

Specifications:

• - Belt Width: 200 mm
• - Performance Test: Oil Removal Test: 50-60 LPH
• - Observation: 60 LPH Oil Removal, dependent on oil layer thickness and oil type
• - Electrical Items: A.C. Three Phase Geared Motor
• - Motor Rating: 0.25 H.P. / 0.18 KW, 415 VAC (+/- 10%), 1440 rpm, 50 Hz (+/- 5%), TEFC, Worm Geared
• - Motor Make: SIEMENS or as per PO and our specifications approved by you
• - Belt Material: Imported polymer belts for extended belt travel life and maximum oil removal efficiency
• - Optional Oil Concentrator: Removes any residual water picked up during skimming
• - Discharge: Only oil flows into the discharge drum, ensuring effective separation from water

This system is optimized for efficient oil removal, providing excellent performance in various industrial applications where the separation of oil and water is critical.
